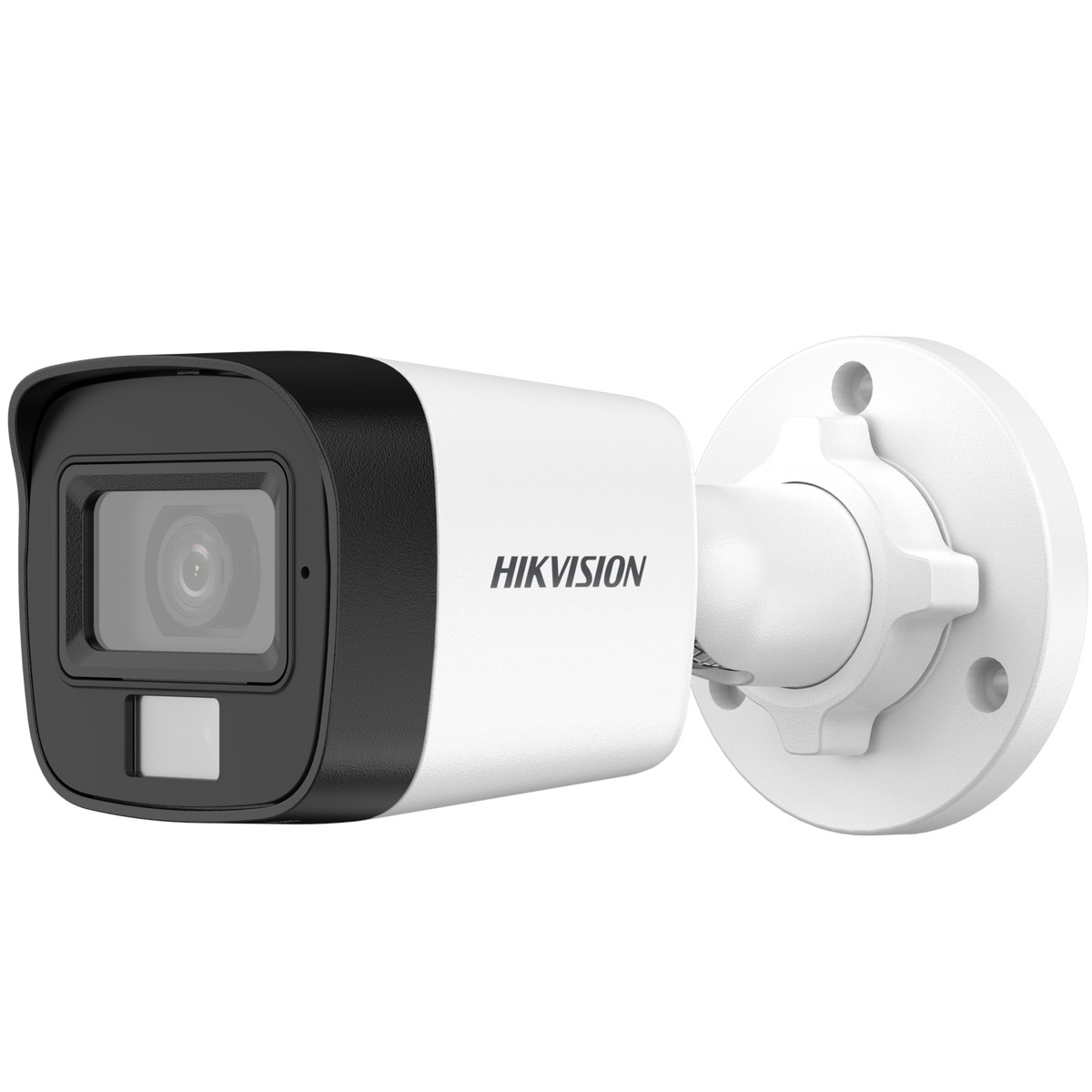

Hikvision 2MP Smart Hybrid Light Fixed Mini Bullet Camera DS-2CE16DOT-EXLPF

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

• Lens MountM12

• Illuminator
• Supplement Light TypeSmart,IR,White Light
• Supplement Light Range

  IR : Up to 20 m

  White Light : Up to 20 m

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialPlastic
• DimensionØ70 mm × 138.8 mm (Ø2.76" x 5.46")
• Max. 150 g (0.33 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%, Max. 3.2 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67
